Chicago Pneumatic CP7300RQC Drill

Category:





Standard lead time may apply

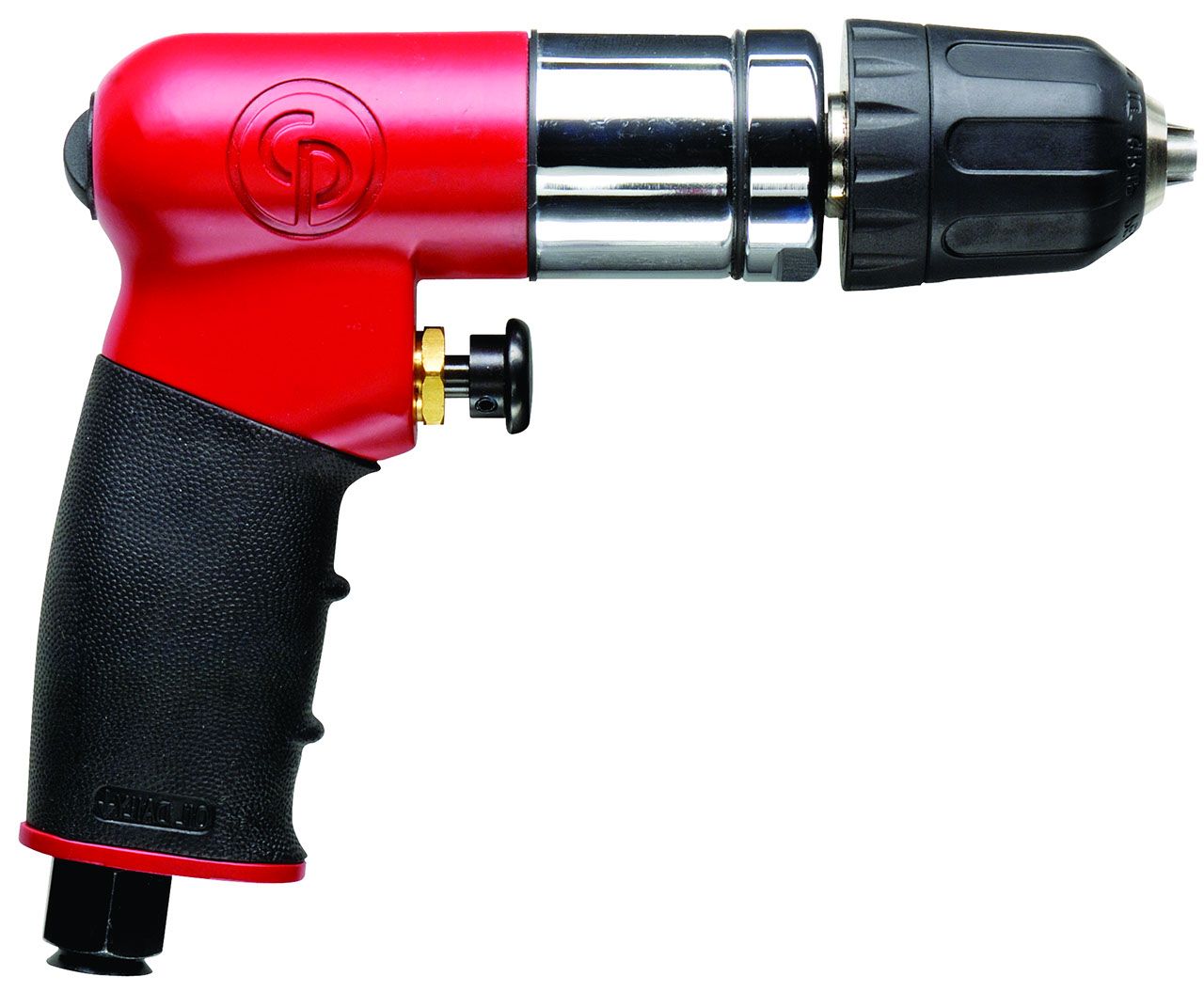

Chicago Pneumatic CP7300RQC Drill



Product details



Chicago Pneumatic CP7300RQC Drill is a power tool equipped with 1/4″ (6mm) Jacobs industrial keyed chuck for use with various drill bits for drilling holes. This reversible, compact, keyless chuck has excellent precision to allow for very slow start-up and control throughout the drilling process.



Features

  • 1/4″ (6 mm) reversible compact drill
  • Ergonomic grip and lightweight, only 1.35 lbs (0.61 kg)
  • Teasing throttle
  • Durable gearbox for low wear and long life
  • Adjustable exhaust



Benefits

  • Drills for General Maintenance, efficient and great for tight areas with its size
  • Good precision to allow for very slow start-up and control throughout the drilling process
  • Excellent for drilling, honing, reaming, and hole sawing



Suggested applications

  • MRO – Maintenance, Repair Operations
  • Industrial Maintenance
  • Non-intensive production
  • Precision drilling
  • Honing
  • Reaming
  • Hole sawing



Click on image below to see the CP Operator’s Manual

Chicago Pneumatic CP7300RQC Drill

For CP multilingual Safety Instructions & Safety Data Sheets, click here



Click here to see other Drills Jeaton supplies

Additional information

Length

127 mm

Net Weight

0.61 kg

Average air consumption

4.1 cfm

Actual air consumption

16.4 cfm

Free speed air consumption

18.9 cfm

Air inlet thread size

1/4 "

Min. hose size

10 mm

Sound pressure

87 db(A)

Sound power

98 db(A)

Vibration ISO

ISO-28927-5

Vibration

<2.5 m/s²

Chuck capacity

6 mm

Collet/ spindle size

3/8-24

Free speed

2700 rpm

Power

0.27 hp

Stall torque

3 Nm
