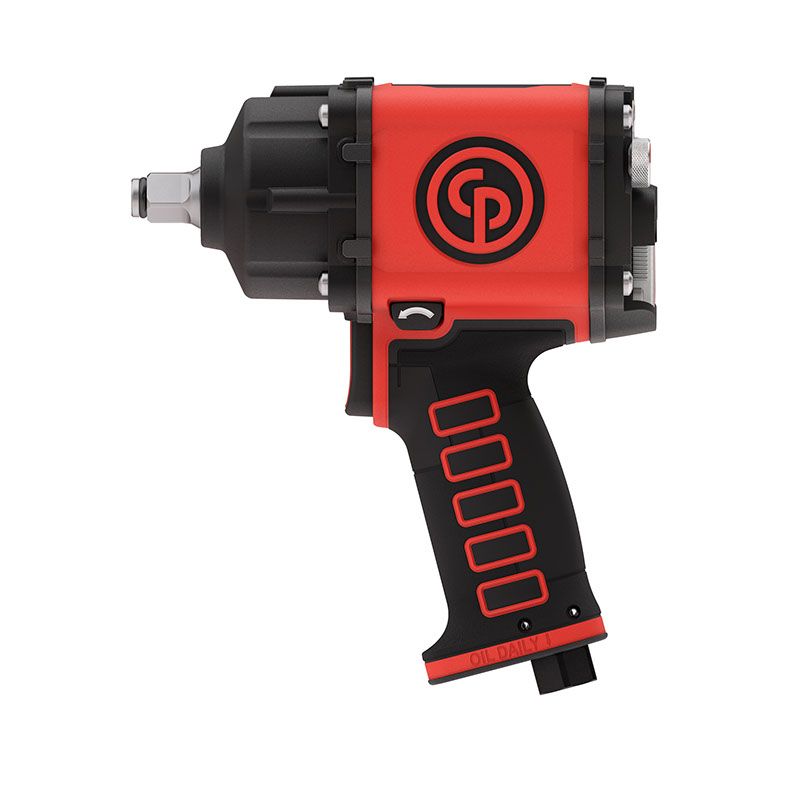

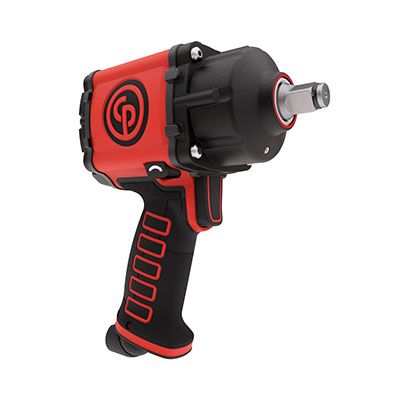

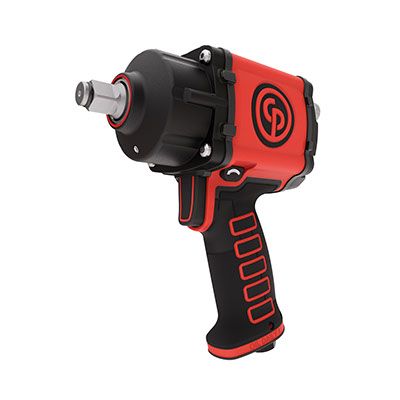

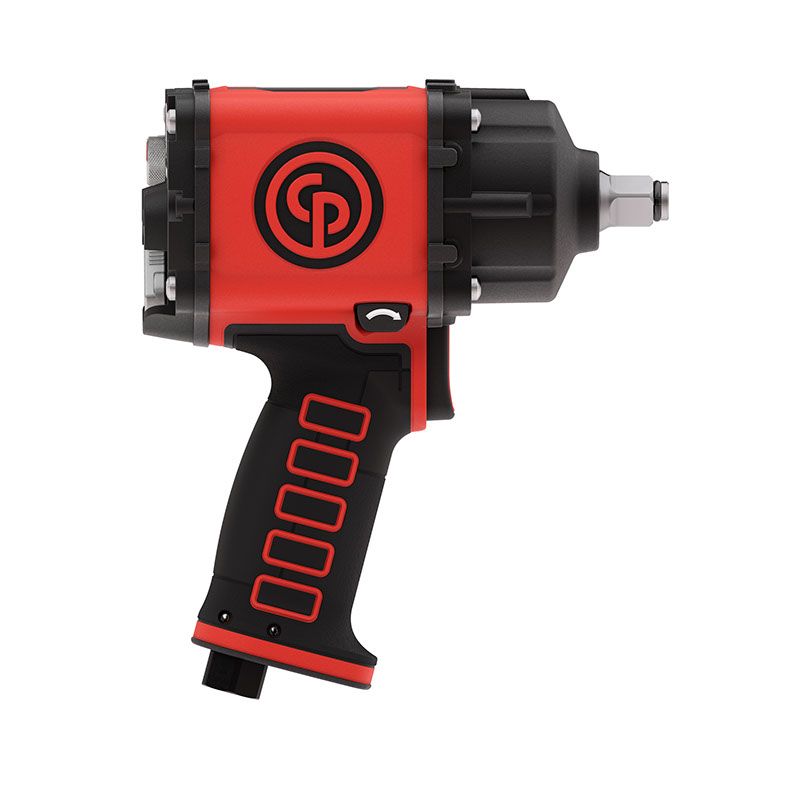

Chicago Pneumatic CP7755 Impact Wrench

Chicago Pneumatic CP7755 Impact Wrench delivers high torque in a compact, ergonomic design, making it perfect for tight spaces and heavy-duty use. This product is designed for installing and removing threaded fasteners in wood, metal or plastic. No other us permitted.

Benefits

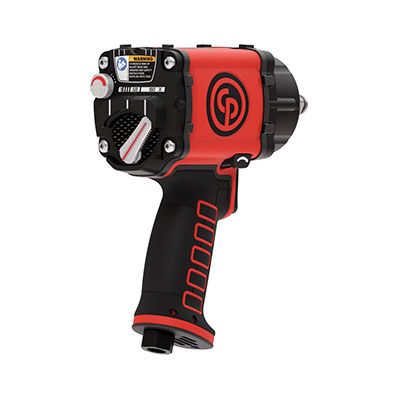

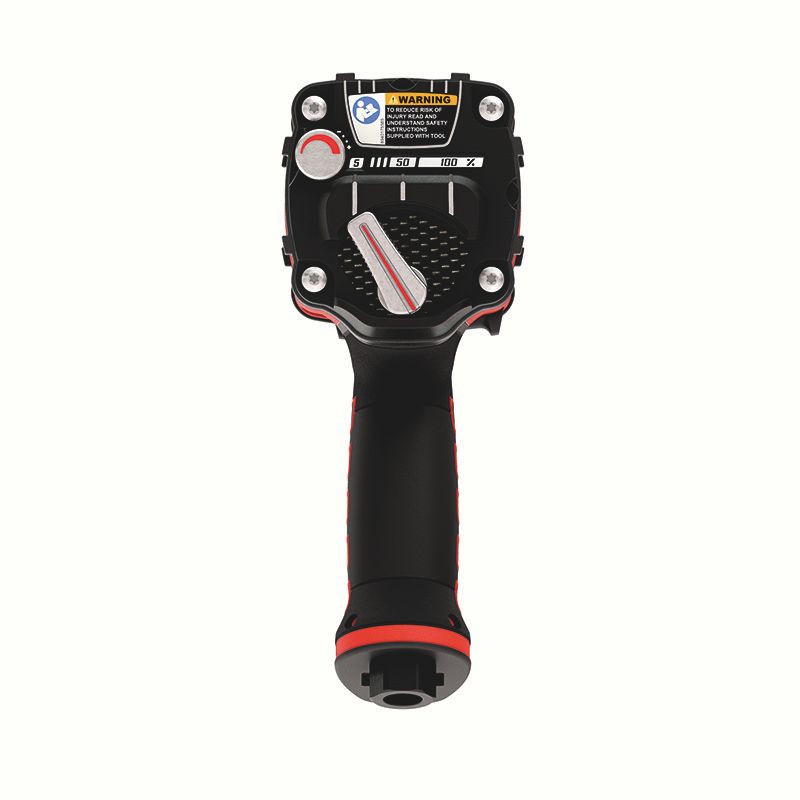

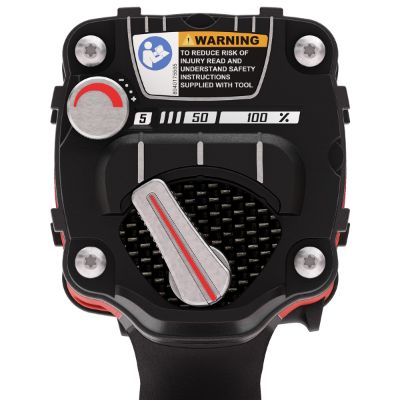

Unique multi-position power control system: 11 setting options

Patented Air Flex Mini air inlet: 360° swivel air inlet for freedom of movement

Twin hammer impact mechanism, hard chromium aluminium cylinder, and bumpers all around the tool for high durability

Due to its composite motor housing, the tool is compact and lightweight

Additional information

Max working torque fwd	575 Nm
Max torque reverse	1300 Nm
Min working torque fwd	80 Nm
Torque limited	No
Air inlet thread size (in)	1/4
Max dynamic air working pressure	6.3 bar
Min hose diam (16 ft hose length)	0.38 in
Min hose diam (5 m hose length)	10mm
Sound Power	105 dB(A)
Sound Pressure	94 dB(A)
Uncertainty vibration-K	3.4 m/s²
Free Speed	7700 rpm
Air consumption at free speed	2.6 l/s
Height (H)	199 mm
Length (L)	169 mm
Width (W)	76 mm
Power weight ratio	700 Nm/kg
Side to Center	38 mm
Weight	1.85 kg
Blow per minute	1200
Body	Composite
Handle type	Pistol
Impact mechanism	Twin hammer
Output drive size (in)	1/2
Output drive type	Sq
Output retainer type	Friction ring
Starting system	Trigger
