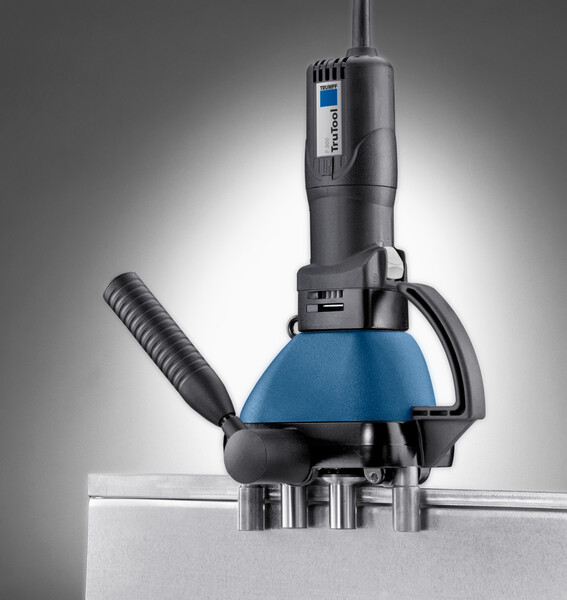

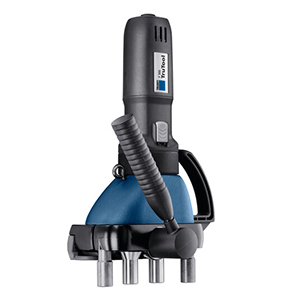

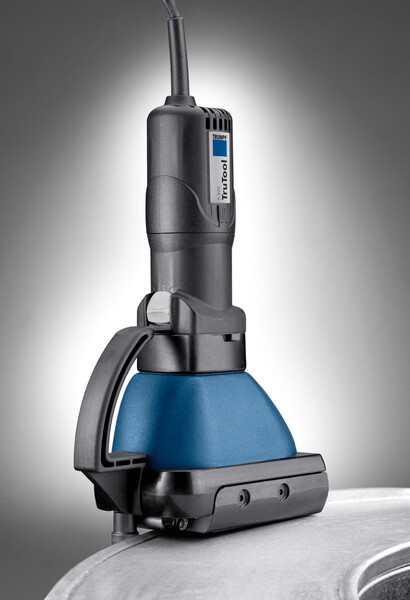

Trumpf F300 Seam Locker
Product details
The Trumpf F300 Seam Locker is ideal for closing Pittsburgh lock seams on straight or curved ducts. You can work quickly with the quiet roll/glide process and achieve a tight connection. The sheet thickness range for this is 0.75 mm to 1.25 mm for mild steel. The adjustment to the sheet thickness is automatic.
Features
- Flange height and sheet thickness
- Suitable for flange heights of 9 mm – 13 mm and for sheet thicknesses of 0.75 mm – 1.25 mm.
- Excellent process reliability
- Automatic adjustment to the sheet thickness gives you consistent seam results.
- Area of application
- With F300, you can lock seams on straight and curved ducts.
Suggested Applications
- For closing Pittsburgh lock seams.
- On straight or curved ducts with flange heights of 9 mm – 13 mm and sheet thicknesses of 0.75 mm – 1.25 mm for mild steel

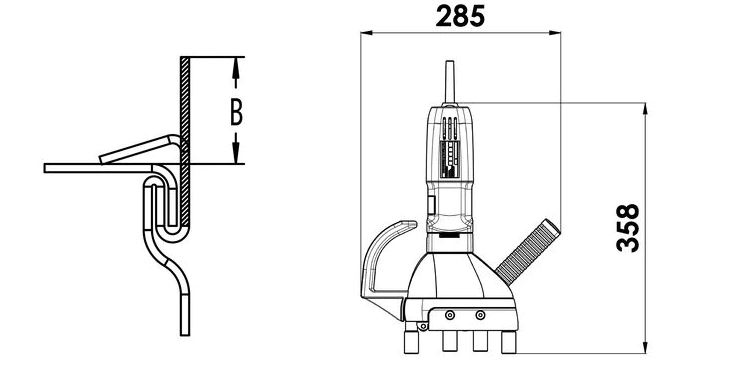

To see Technical Data Sheet, click on image below.
To see a video on Seam Lockers, click here.
To see other Seam Lockers Jeaton offers, click here
